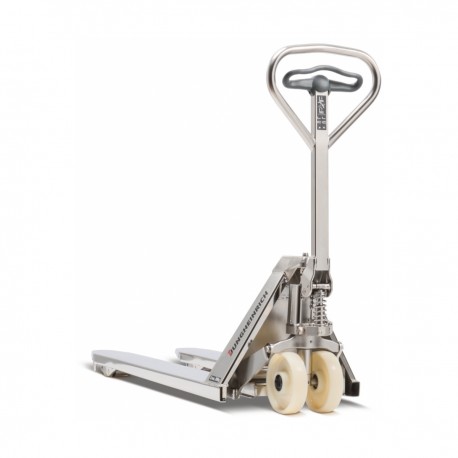

The Jungheinrich AM I20 stainless steel pallet truck with 1,140 mm fork length is ideal for use in the food industry or in areas prone to high levels of corrosion, such as those encountered in the chemical and pharmaceutical industries.

. Corrosion and acid-resistant chassis
. Closed fork tips to protect against dirt splashes
. Easy to clean
. Sliding brackets for easier pallet lifting
. Food-grade lubricants (class H1/H2)

Jungheinrich AM I20 hand pallet truck made from stainless steel – for harsh environments and high hygiene requirements The stainless steel chassis of the AM I20 pallet truck is acid-resistant and offers long-term corrosion protection even in the most humid environments. This makes the pallet truck ideal for use in the chemical and pharmaceutical industry. The stainless steel pallet truck also satisfies the stringent hygiene requirements of the food sector. All parts that come into direct contact with food products are made from acid-resistant stainless steel. Closed fork tips ensure that the fork rollers do not spray any water or dirt onto the transported load. Cavities are either freely accessible or fully sealed to enable effective cleaning. Only food-grade lubricants of class H1/H2 are used. The grease nipples on all movable parts ensure a long service life and easy maintenance.

You operate the robust and reliable hand pallet truck via a functional control element that is equally well suited to both left and right-handed users. The very short headlength enables safe, effortless use in even the tightest of spaces. Pallets are picked up with ease thanks to the entry rollers and sliding brackets on the fork tips. In our shop, the Jungheinrich AM I20 stainless steel pallet truck with 1,140 mm fork length is available with a range of different steering castors and fork rollers made from either nylon or polyurethane. Polyurethane tyres ensure maximum comfort and quiet operation, while nylon tyres are characterised by their robustness and high chemical resistance. You also have a choice between single or tandem fork rollers. The Jungheinrich AM I20 stainless steel pallet truck with 1,140 mm fork length and 2,000 kg capacity is the perfect choice for humid and harsh environments.

Order the pallet truck for exacting requirements from our shop in your chosen configuration.

Aisle width
1810 mm
Control panel
Operator type
Ground clearance
38 mm
Chassis surface
Tiller height
1220 mm
Tiller surface
Net weight
69 kg
Short distance
Fork width
520 mm
Fork length
1140 mm
Fork roller diameter
80 mm
Fork roller material
Fork roller equipment
Fork height
51 mm
Overall width
520 mm
Overall length
1475 mm
Handle fittings
Pallet truck material
Stainless steel
Face of forks length
335 mm
Load centre
570 mm
Steering wheel diameter
200 mm
Steering wheel material
Pump strokes to lift pallet
Turning radius
1330 mm
2000 kg
Steering wheel width
50 mm
Fork roller width
90 mm
120 mm
Lift height per pump stroke
12 mm
Lift range
85 - 205 mm
Fork support width
520 mm
Jungheinrich AM I20
Pump strokes to max. lift height
Lowering speed with/without load
0,1 / 0,05 m/s
Steering radius
220 °
Grease nipple
