Description

The sturdy and versatile Ameise® PSE 1.2 electric forklifts are reliable transport trucks for occasional storing and removal at great heights or transport over short distances.

High flexibility is offered by four available lift heights up to 3,514 mm and a maintenance-free lithium-ion battery. The freely selectable charging location and the built-in charger guarantee immediate availability as well as simple and fast booster charging.

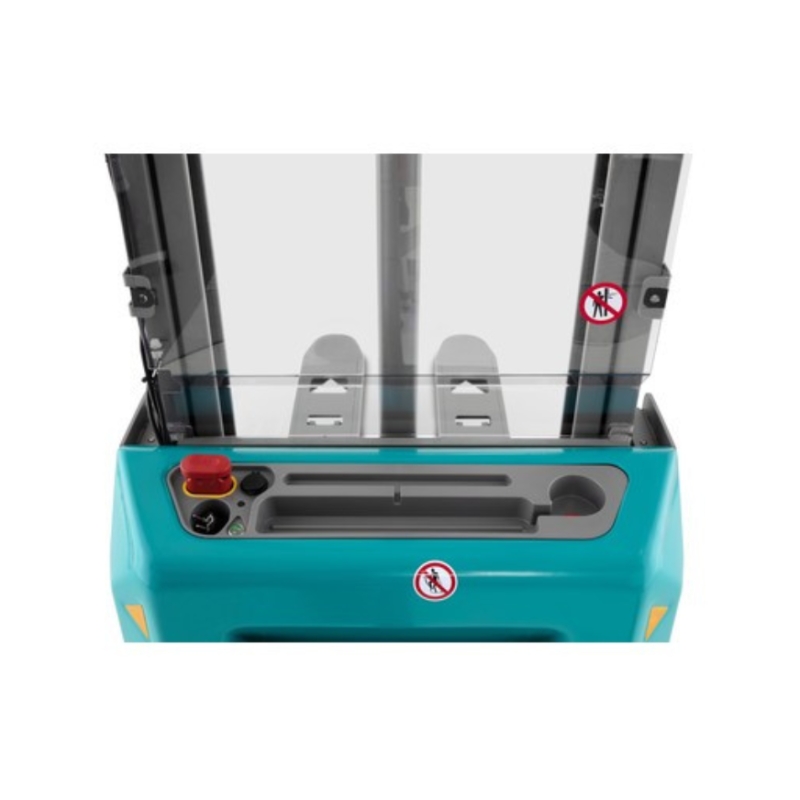

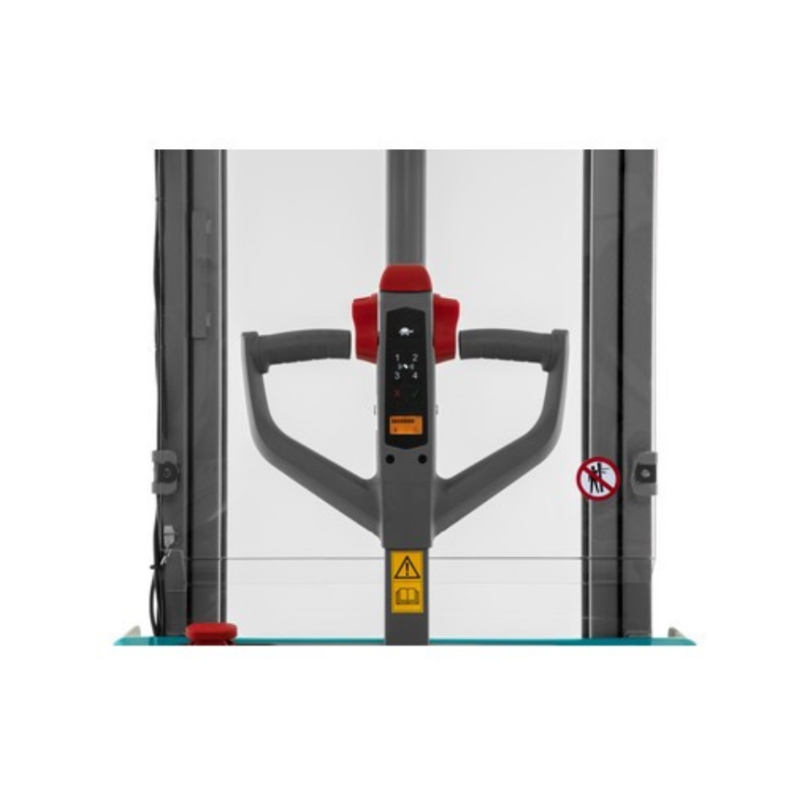

An ergonomically shaped multifunctional tiller handle that can be used by right and left-handed operators offers ease of use, while the protective pane in front of the mast and curveCONTROL for automatic speed reduction when cornering ensure a high level of safety.

For a low-cost entry into the electric forklift truck segment, choose the PSE 1.2 Simplex Li-ion with two lift heights up to 2,000 mm – a true professional for storing and removal or order picking.

Drive
electric
Aisle width
2197 mm
Operator type
Pedestrian
Ground clearance
24 mm
Chassis surface
powder-coated
Tiller height
1150 mm
Tiller surface
powder-coated
Route
Short distance
Fork width
180 mm
180mm
Fork length
1150 mm
Fork roller diameter
84 mm
Fork roller material
Polyurethane (PU)
Fork roller equipment
Single
Fork height
60 mm
Overall width
800 mm
Overall length
1710 mm
Face of forks length
570 mm
Load centre
600 mm
Turning radius
1350 mm
Capacity
1200 kg
Fork roller width
93 mm
Lift
110mm
3514 mm
Lift range
86 - 3600 mm
Lowering speed with/without load
0.13 / 0.11 m/s
Colour chassis
Jungheinrich grey
Lift motor output
2.2 kW
Travel speed, laden/unladen
4.2 / 4.5 km/h
Battery type
Lithium-ion
Battery voltage
24 V/per unit
Battery capacity
60 Ah/per unit
Net weight incl. battery
595 kg
Drive wheel diameter front
210 mm
Drive wheel material
Polyurethane (PU)
Additional wheel width
50 mm
Drive wheel width front
75 mm
Lift speed with/without load
0.11 / 0.16 m/s
Charger
integrated
Spare wheel diameter
100 mm
Max. gradeability laden/unladen
5 / 10 %
Battery weight
19 kg
Brake
electromagnetic
Drive motor power
0.65 kW
Mast
Duplex telescopic mast (ZT)
Mast height
2280 - 4037 mm
Creep speed button
yes
Drive control type
DC Speed Control
Access options
Pin-Code
No. of batteries
1
  • Coming soon
  • Availability: 0

    Ameise® PSE 1.2 Lithium Ion Electric Stacker Truck with two-stage mast

    Ideally suited for light use and storage of pallets - up to 3,600 mm in height

    • Capacity 1200kg
    • Two-stage mast 3514 mm
    • Fork length 1180 mm
    • Lithium-ion battery

    €4,549.00
    Tax excluded
    52340413
    Status: New model Q2
