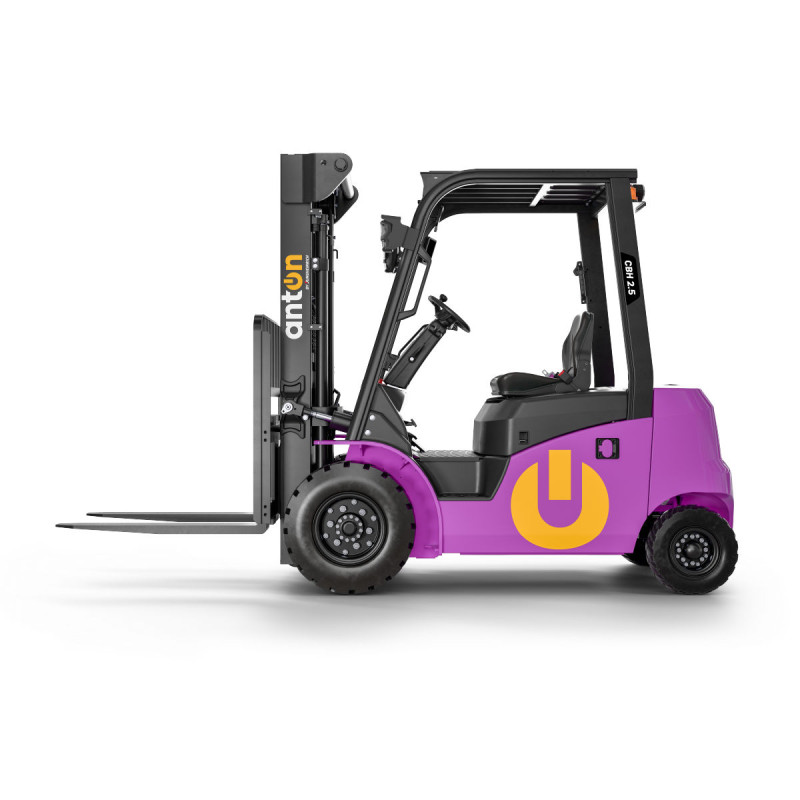

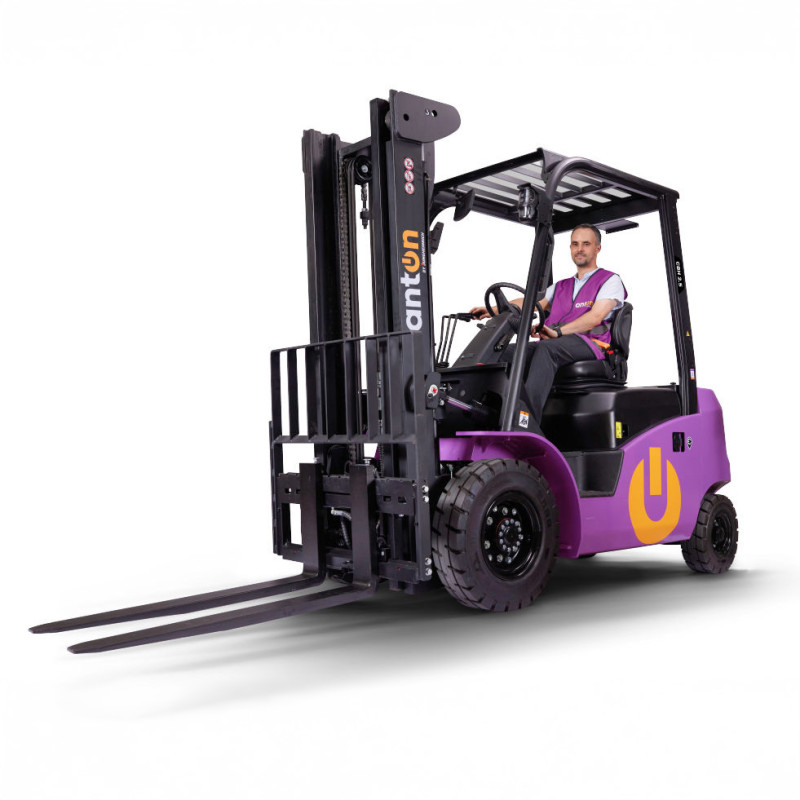

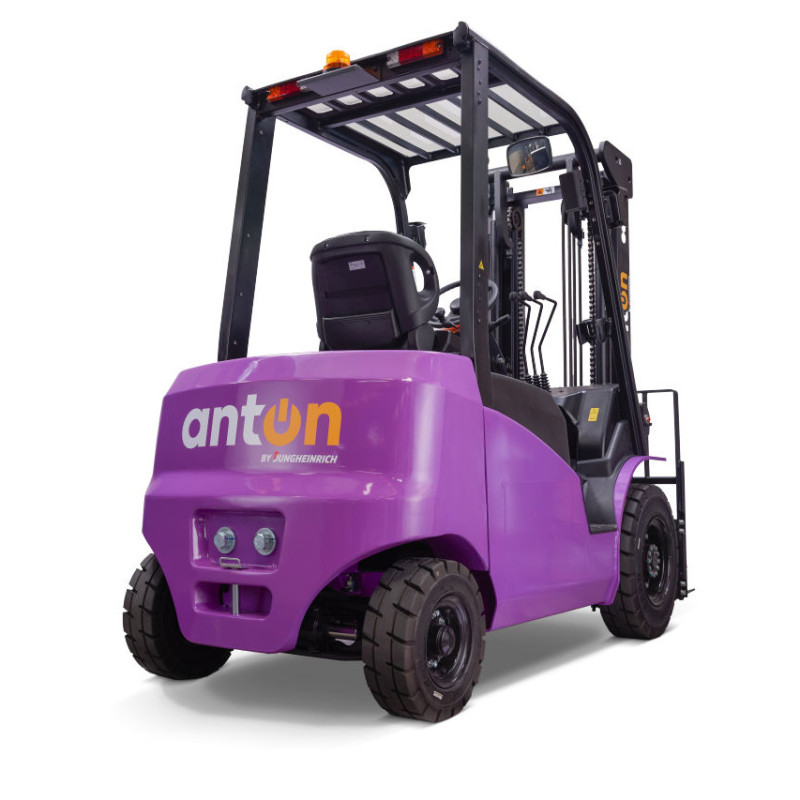

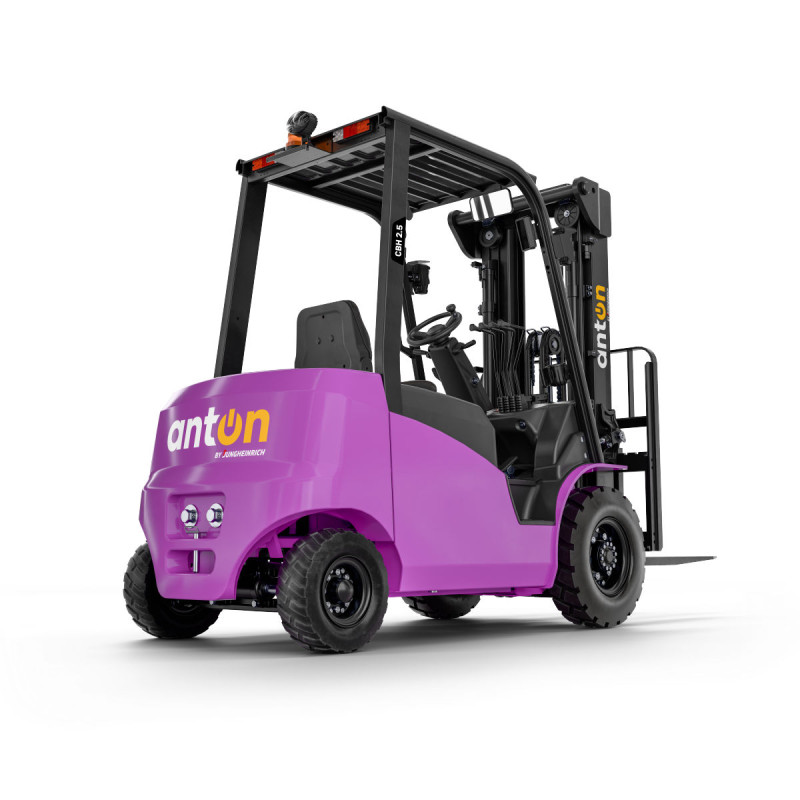

Electric forklift - CBH 2.0 | Mast 4800mm - ASS | AntOn by Jungheinrich

Description

Built for use in changing environments.

The AntOn by Jungheinrich CBH electric forklift truck combines what counts for daily operation: robust technology, easy handling and reliable performance. Whether in the warehouse, outdoors or at the loading ramp: the CBH is versatile and delivers exactly where it is needed. This electric forklift truck will always make your job easier – from internal transport, manoeuvrable applications in confined spaces and the rapid loading and unloading of HGVs. It excels not only in daily use but also through its fast availability and a price/performance ratio that makes transitioning to electromobility particularly appealing. With three carefully designed equipment variants and advanced lithium-ion power, the CBH offers exactly the flexibility your company needs today, making the choice easy – a forklift truck that simply works.

Versatile Functional power for every job.

Two capacity options, each available in three equipment variants to match different applications, needs and budgets.
Compact and highly manoeuvrable – even in tight spaces.
Large tyres and high ground clearance for outdoor use on uneven ground.
Flexible charging options via an external or built-in charger, depending on the model.
Travel speeds up to 15 km/h for more efficient working.

Straightforward Intuitive technology that makes work easier.

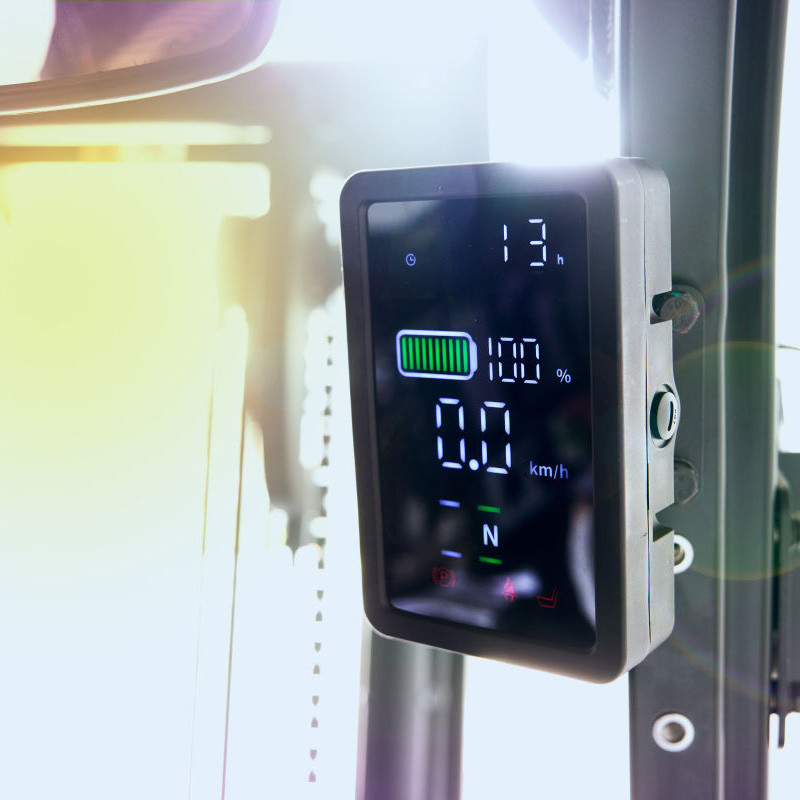

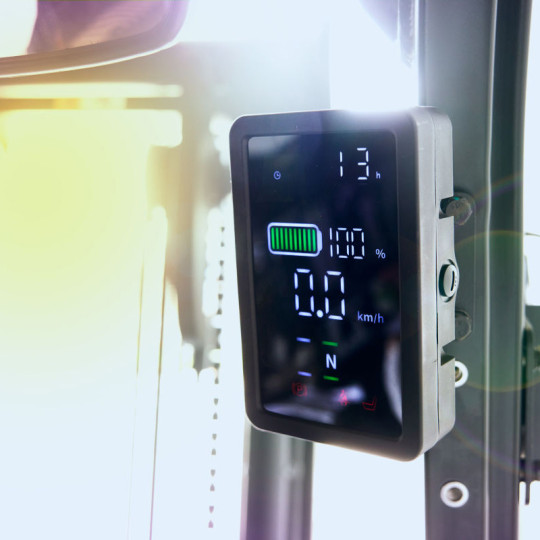

LED display with all key info at a glance.

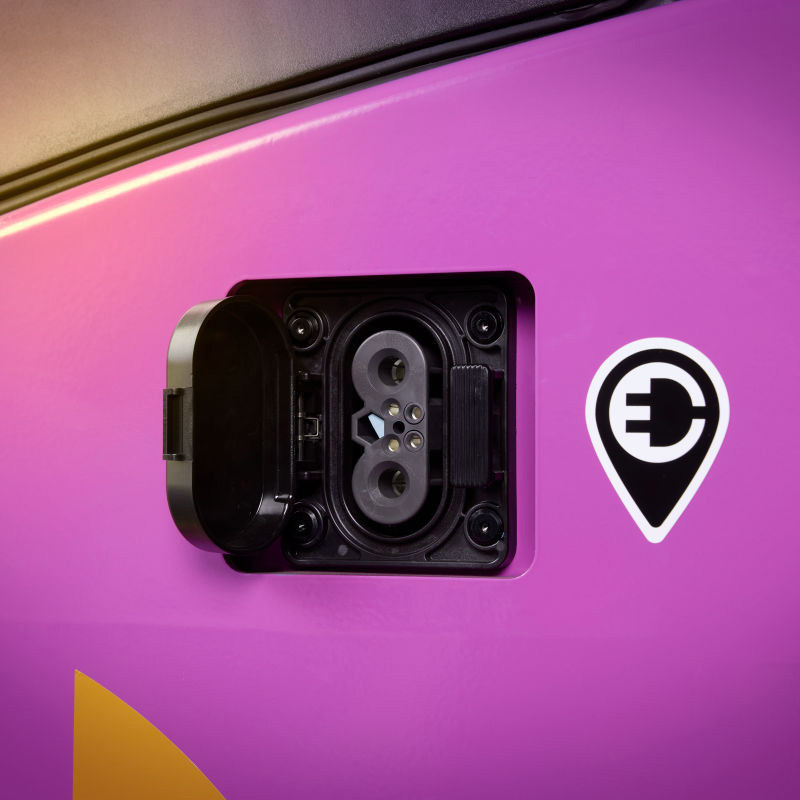

Simple control elements – from the control panel and comfortable pedal to the water-resistant charging port.
Optimum visibility for safer daily operation.

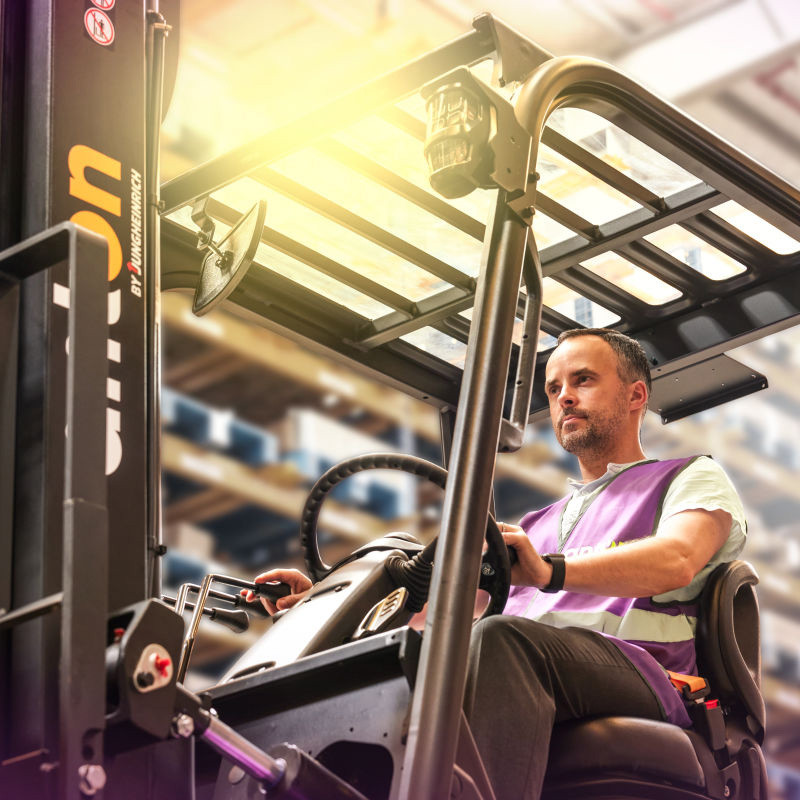

Ergonomic operator position with adjustable steering wheel and, depending on the variant, comfort seat andgenerous legroom.

Cost-effective Solutions for every task and every budget.

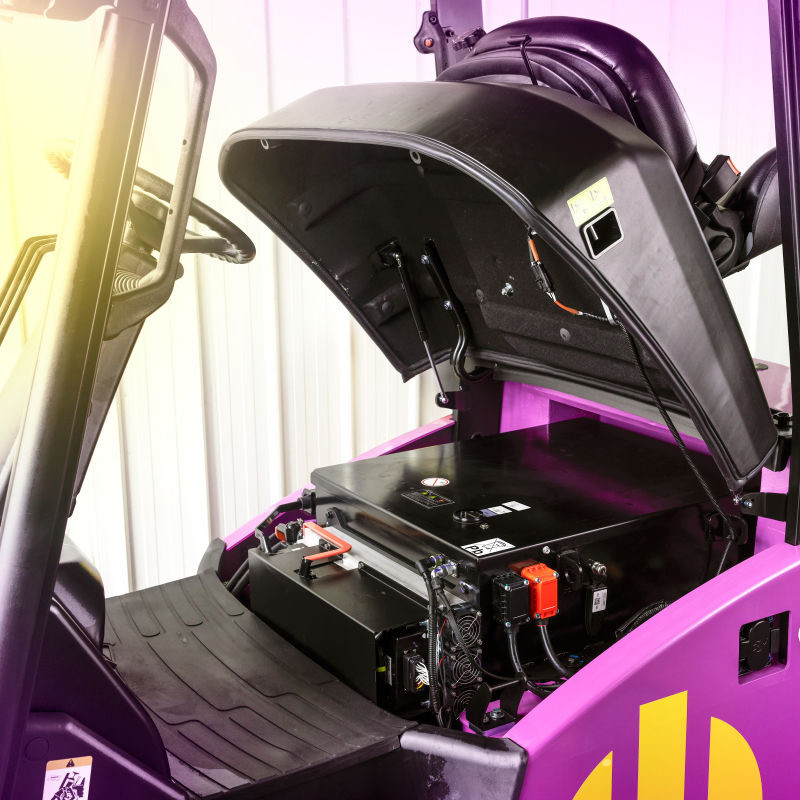

Maintenance-free 80-V lithium-ion battery for long service life and short charging pauses.
Rapid lift speeds save time with every application.
High availability and cost-efficient acquisition.
Fast spare parts supply keeps your operations running smoothly.

Terms

A maximum of 12 months where the goods have been put into an operation working time of no more than 20 hours per week or a maximum of 1,000 operating hours in the 12-month period, whichever occurs first.

For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.ie/anton-service.

Product Details

Battery capacity: Battery, 80V, Li-Ion, 230 Ah, 18400 Wh
Fork Dimensions: 122x40x1150 mm
Fork Carriage Width: 1040 mm
Load Guard: Height: 1025 mm, Width: 1040 mm
Mast Dimensions: h3: 4800 mm. h1: 2220 mm
Battery Indicator: With time
B-pillar handle with horn button: Yes
Seatbelt logic switch: No

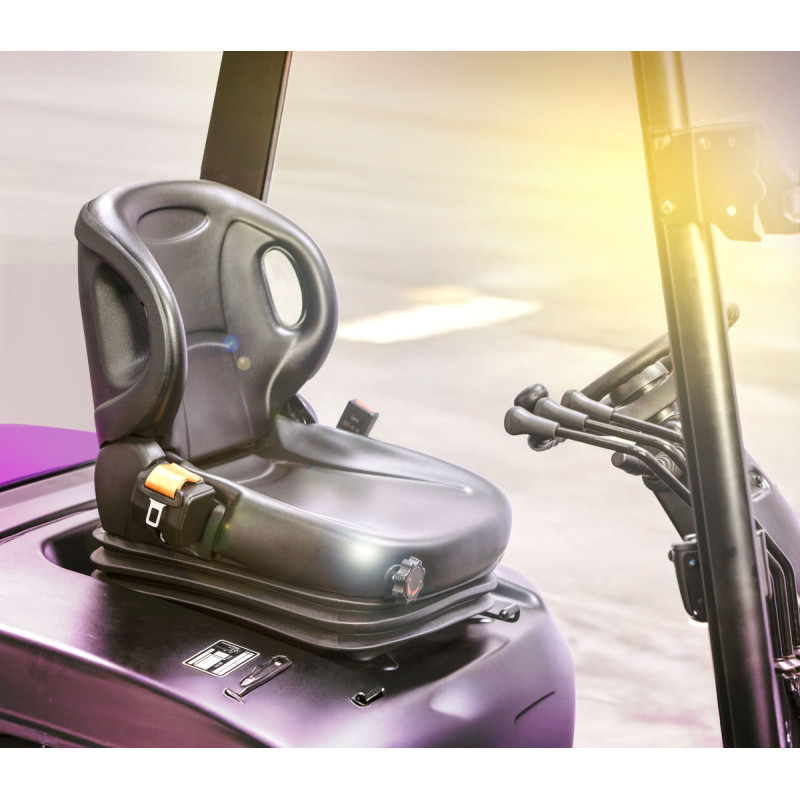

Seat Type: Comfort seat incl. arm rests right + left
Attachments: External side shifter, 4th Pipe (Triplex) w/o 3rd pipe
Electrostatic Chain: Earthing strip antistatic
Traction Pin: Trailer coupling
Front Lamp: Working light front (LED)
Rear Lamp: Rear lamp (LED)
Warning Lamp: Strobe light (LED)
Steering Lamp: Combi light rear
Blue Lamp: Floor spot 1x back
Area Warning Lamp: No
Rear-view Mirror: Inside
Buzzer: Acoustic warning buzzer
OPS System: Seat belt lock control
USB Interface: Yes

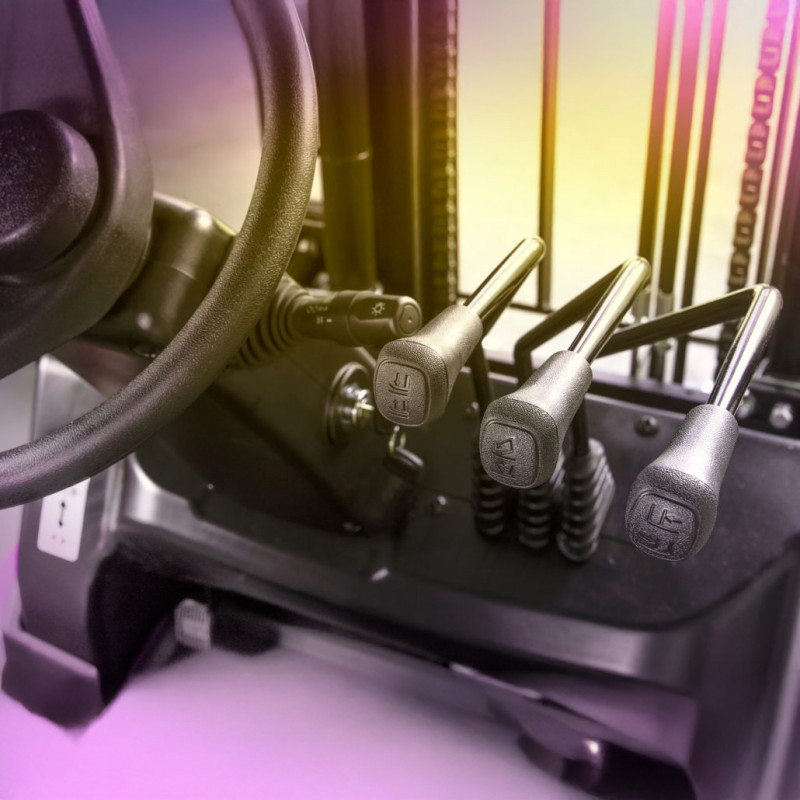

Proportional Lift System: Manual lever

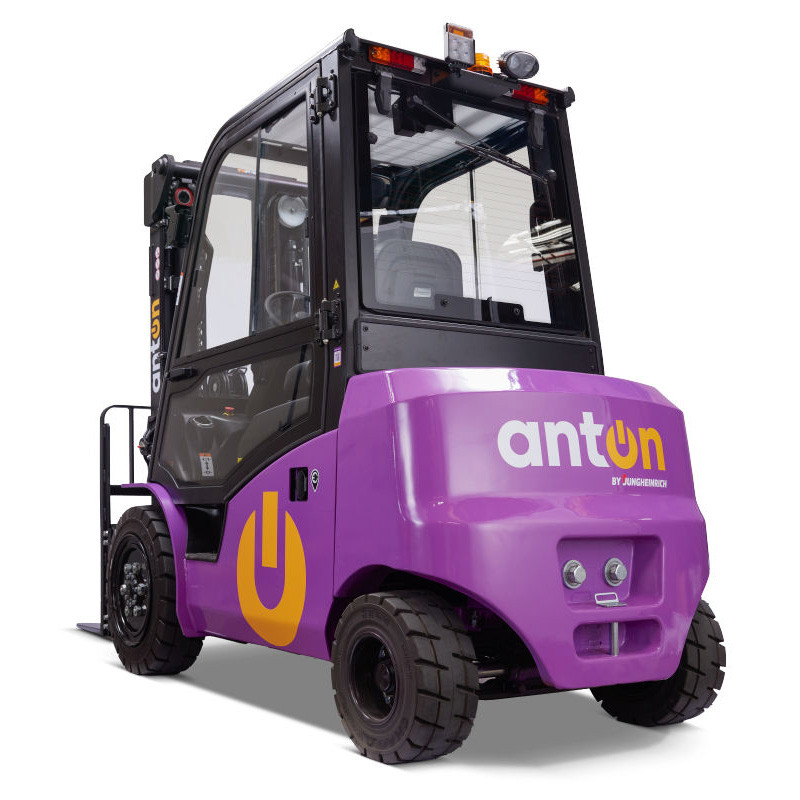

Cabin: Operator's cabin, Comfort 3, Windscreen made of tempered glass, with windscreen wipers & washer system.
Heater: Electric heating - 0.8 kW output

Attachments

CBH-2025 Factsheet 2.0-3.5 (3.7MB)

AntOn by Jungheinrich Electric forklift CBH 2.0 DZ4800, ASS, ZH2, Com3

Name: AntOn by Jungheinrich Electric forklift CBH 2.0 DZ4800, ASS, ZH2, Com3
Brand: AntOn by Jungheinrich
SKU: 52536537
Price: 27754 EUR
Availability: InStock
